3624 Glass Loading Cutting Machine

Time：2023-04-0338 Views

The glass loading cutting machine is composed of automatic glass cutter and automatic glass cutter.Product speed high precision, investment less quick, this is the choice of many enterprises.

Glass loading cutting machine is composed of automatic glass cutter and automatic glass cutter.Adopt imported single shaft drive mode, 1 servo motor drive of 850 watts.

Japan imports SMC brand electromagnetic proportional valve, the computer control system is (Beijing Baolun system) (Shanghai Weihong system), Glass cutting optimization system Zibo Chuangying optimization system, can optimize the normal glass size and special size.The pinion and rack are made with Feng Mao brand imported from Taiwan. The linear guide rail is imported from Taiwan Ding Han brand.Positioning optical fiber is imported from Japan Panasonic brand.Table is bearing whole frame to cover completely.

Glass loading cutting machine speed high precision, investment less quick, this is the choice of many enterprises.

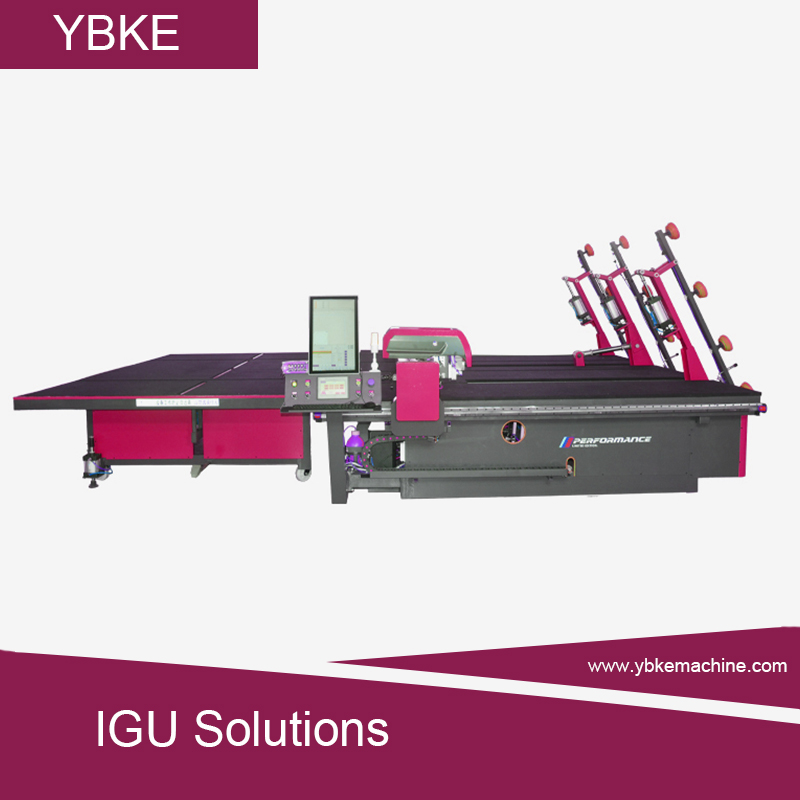

Glass loading cutting machine.jpg

Product Parameters

Itme	Data
Voltage	380V 50HZ 3P
Installation power	9kw
Cutting glass size	2440*2000mm
Cutting glass thickness	3-19mm
Diagonal accuracy	≤±0.2mm/m²
Head speed	≥200m/min
Positioning accuracy of cutting head	≤±0.2mm
Acceleration of tool holder	≥10m/s²
Air compress	0.6MPa
Cutting bridge speed	0-200m/min
Dimension	33002900820mm

If you are interested in our product, please feel free to call us+86 18005412752

Label ：ALL
