4228 Glass Cutting Line

Time：2023-04-0135 Views

The glass cutting line is mainly used in the processing of flat glass. It can be used quickly and accurately to take out the glass, cut the deformed glass and break the glass.

The glass cutting line is mainly used in the processing of flat glass. It can be used quickly and accurately to take out the glass, cut the deformed glass and break the glass.

Glass cutting line with integrated guide rail, exclusive patent, cutting glass with higher accuracy.Machine countertop is waterproof, fireproof, anti-low temperature, anti-corrosion material, never deformation.Panasonic infrared scanning point function and infrared scanning template function, Beijing Guiyou glass cutter optimization software, greatly improve the utilization rate of glass, reduce production costs.

Finally, the glass cutting line in use without special requirements for operators, simple operation, easy management.

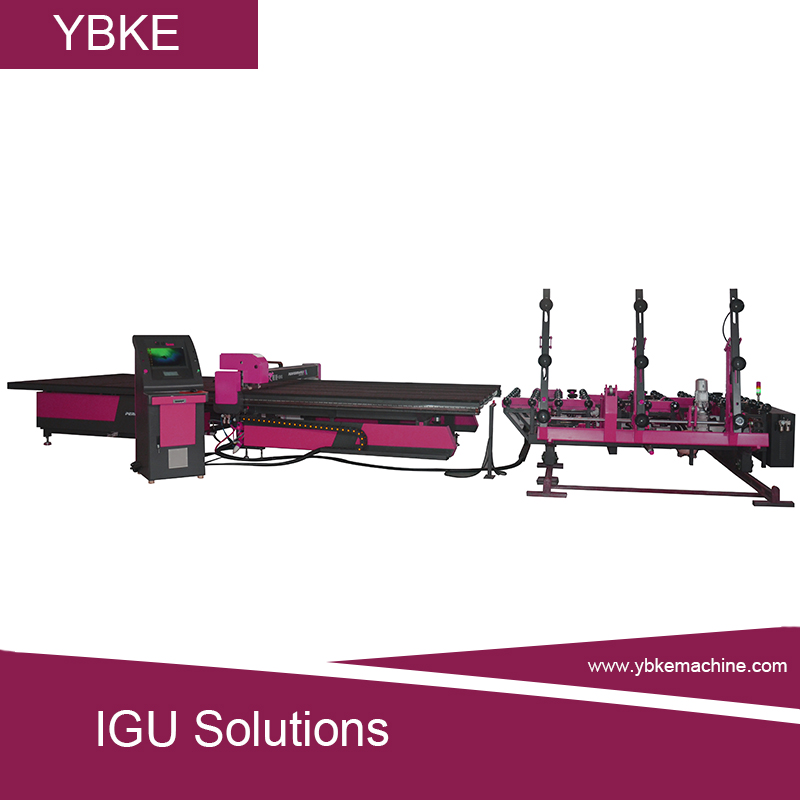

Glass cutting line.jpg

Product Parameters

Item	Data
Dimensions	LWH: 14000mm3750mm900mm
Table height	900±30mm (foot adjustable)
Power requirements	380V, 50Hz
Installed power	10kW
Compressed air	0.6Mpa
Cutting glass size	MAX.4200*2800mm
Cut glass thickness	2~19mm
Cutting acceleration	≥6m/s²
Cutting knife seat	The knife head can be rotated 360 degrees (precisely cut straight lines and special shapes)
Machine head speed Y axis	0～200m/min (can be set)
Head beam speed X axis	0～200m/min (can be set)

If you are interested in our product, please feel free to call us+86 18005412752
