Semi-auto Spacer Bending Mmachine

Time：2023-04-0529 Views

Semi-auto spacer bending machinesettles the problem of water vapor permeation of main permeabnle chanels- four corners of the insulating glass.Double the life of insulating glass and save the plugs.Increase the production efficiency of aluminum frame.

Semi-auto spacer bending machine settles the problem of water vapor permeation of main permeabnle chanels- four corners of the insulating glass.Double the life of insulating glass and save the plugs.Increase the production efficiency of aluminum frame.

The corner is more esthetic.Good in integral rigidity/ flatness, more convenient in spreading butyl and laminating.

The long - standing programming method and famous components of semi-auto spacer bending machine provide reliable guarantee for equipment operation.

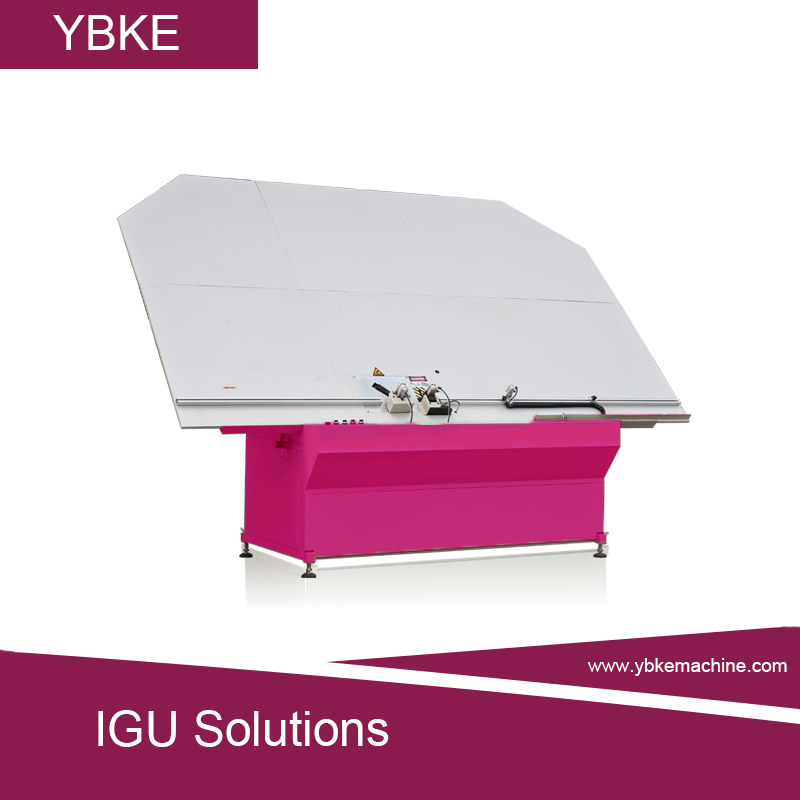

Semi-auto Spacer Bending Mmachine.jpg

Product Parameters

Item	Data
Power supply	380V 50Hz 3P
Total power	1kw
Air pressure	0.6MPa
Aluminum bar specification	6-27mm
Aluminum spacer size	250×250mm--2500×3000mm
Aluminum strip thickness	6.5mm
Bending angle error	±0.3°
Bending Speed	＜30s/pc（1000*1000mm）
Overall dimension	3800×1200×1900mm
Weight	500kg

If you are interested in our product, please feel free to call us+86 18005412752
