Horizontal Automatic Sealing Machine(2800*2800)

Time:2023-04-0419 Views
Pneumatic two component extruder machine is the production of hollow glass curtain wall , special glue equipment,realize the twosealing in A, B component mixed with glue once completed. particularly suited to the requirements ofproportioning precision demanding glue

Pneumatic two component extruder machineis the production of hollow glass curtain wall , special glue equipment,realize the twosealing in A, B component mixed with glue once completed. particularly suited to the requirements ofproportioning precision demanding glue.



Applicable to the doors and windows and curtain wall glass deepprocessing enterprises efficient, high quality, high rate of qualified pipelining production demand. Framewelding as a whole,increase Longmen frame,welding triangles to form the stable structure ,overcome thecantilever beam when shaking.



Pneumatic two component extruder machine 'Skey parts adopt the world famous brand original parts.Curing agent hydraulic system is equipped with two filtering devices, improves the two component mixture uniformity and curing performance.

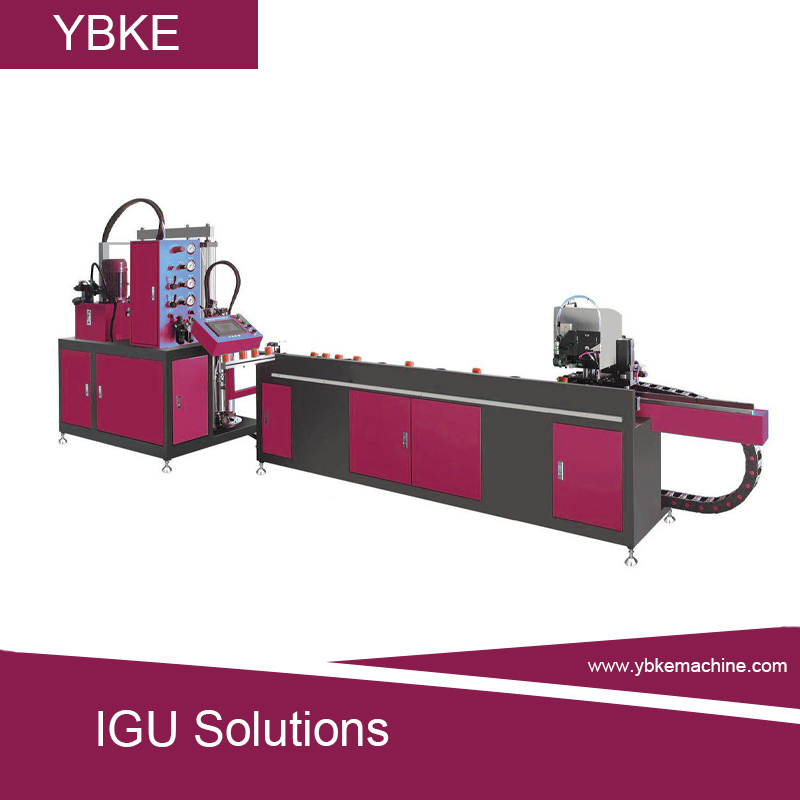

horizontal automatic sealing machine.jpg





Product Parameters

Item

Data

Maximum glass size

2800*2800mm

Minimum glass size

200*200mm

Aluminum strip width range

two glass 6-30A; three glass <18A

Adjustment method

touch screen one key switch

Gluing speed

10-40mm/s

Ratio range

8-12:1

Power supply

3kw 380V

Air source pressure

0.6-1.2Mpa

Equipment size

3000*600*1200mm

Glue supply machine

1300*1000*2000mm


If you are interested in our product, please feel free to call us+86 18005412752
